Products
CONVEYOR BELTS
1. RUBBER CONVEYOR BELTS2. PVC CONVEYOR BELTS
3. PU BELTS
4. SIDEWALL/PROFILE/CLEAT CONVEYOR BELT
5. SILICONE RUBBER CONVEYOR BELTS
6. TEFLON BELTS
7. CATERPILLAR BELTS
8. LIFTING BELTS
9. CANVAS BELTS
10. MODULAR BELTS
11. SLAT CHAINS
12. RUBBER MOULDING/LAGGING FOR CONVEYOR ROLLERS AND COMPONENTS
13. SS CONVEYOR BELTS
RUBBER CONVEYOR BELTS
NyloGrip Conveyor belts cover a wide spectrum of types and applications. Our special bonding techniques ensure very high adhesion levels between cover to ply and ply to ply, achieving superior belt consolidation and higher peel resistance. Better transverse flexibility of our belts allow deeper troughing, improving volumetric transfer capacity of the conveyors and at the same time higher longitudinal flexibility allows use of smaller pulleys and reduced flex fatigue.
1) GENERAL PURPOSE
Grade M24:
Grade N 17
2) HEAT RESISTANCE
a) Grade HR (T1)
b) Grade SHR (T2)
c) Grade SHR 180
3) OIL RESISTANCE
4) GRADE HYGENIC
5) FIRE RESISTANT
The above belts can be custom built with Skirt, mechanical attachments, as per client requirement.
The cover material on top can be given in rough texture for conveyor with elevation (upto 15deg) from ground level.
1) M24 Grade Rough Top
2) HR Grade Rough Top
We can provide services like measurement on-site, Joining of the belt on-site and Rubber Moudling/ Lagging for the Conveyor Rollers
JOINING PROCESS ON_SITE
COVER GRADES
1) GENERAL PURPOSE
Grade M24:
Grade N 17
2) HEAT RESISTANCE
a) Grade HR (T1)
b) Grade SHR (T2)
c) Grade SHR 180
3) OIL RESISTANCE
4) GRADE HYGENIC
5) FIRE RESISTANT
| Grade | Conforming to IS: 1891 (1988) | Tensile Strength Mpa (Minimum) | Percentage elongation at break (Minimum) | Temperature Deg C (Maximum) | Application |
|---|---|---|---|---|---|
| M 24 | Part 1 | 24.0 | 450 | 60 | Used in heavy duty applications for highly abrasive materials like metallic ores, coke, stone, rocks etc |
| N 17 | Part 1 | 17.0 | 400 | 60 | Recommended to carry moderately abrasive materials as coal, fine ores, cement sand etc |
| HR (T1) | Part 2 | 12.5 | 350 | 125 | For carrying hot coarse materials upto 125degC and hot fine materials upto 100degC |
| SHR(T2) | Part 2 | 12.5 | 350 | 150 | For carrying hot coarse materials upto 150 degC and hot fine materials upto 100degC |
| SHR 180 | --- | 12.0 | 350 | 180 | Excellent heat resistance and moderate abrasion resistance characteristics and is recommended upto 180C for coarse and 150C for fine material |
| OR | Part 3 | 12.0 | 250 | 70 deg C | Suitable for carrying materials which leave residues of fat and oil |
| HYGENIC | Part 4 | 10.0 | 350 | 60 deg C | M24 Grade white for conveying Food products like tea, coffee, fruits and pharmaceutical products |
| FR | Part 5 | 17.0 | 350 | 180 C | In Coal Mines and Thermal Power stations where there is a risk of fire hazard. Has self extinguishable rubber cover |
The cover material on top can be given in rough texture for conveyor with elevation (upto 15deg) from ground level.
1) M24 Grade Rough Top
2) HR Grade Rough Top
| Width | Upto 2000mm |
| Length | Open or Endless |
| Plies | 3 to 6 plies |
| Thickness | Upto 40mm |
| type of Synthetic carcass | General Duty , Extra Duty, Heavy Duty |
| Edges | Cut or Moulded Edge |
| Ply Construction | Straight Ply, Stepped Ply and Reversed Stepped ply |
| Fabric | Cotton/Cotton, Cotton/Nylon, Nylon/Nylon and Polyester/ Nylon (EP) |
| Type of Joint | Cold Type (For Site Joints), Hot Moulded (Press-Joint), Mechanical Joints (SS-alligator Clip Joint using Clipper make) |
We can provide services like measurement on-site, Joining of the belt on-site and Rubber Moudling/ Lagging for the Conveyor Rollers
JOINING PROCESS ON_SITE

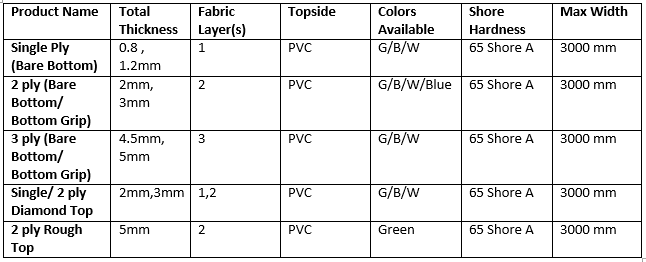

PVC CONVEYOR BELTS
PVC Bare Bottom Belts: For General duty conveying applications. 2 layers of PVC cover with single/two/three or more plies of Polyester fabric. The bottom cover is of low noise impregnated Polyester Fabric Bare. Food Grade Belts (Fillers confirming to FDA) available in this range.
PVC Bottom Grip Belts: For General and heavy duty conveying applications. 2 layers of PVC cover with single/two/three or more plies of Polyester fabric. The bottom cover is of Polyester Fabric- PVC Grip Pattern. The belt is used when there are multiple rollers in the conveyor. Food Grade Belts (Fillers confirming to FDA) available in this range.
PVC Diamond Top Belts: For General duty conveying applications. 2 layers of PVC cover with single or two plies of Polyester fabric. The Top Cover will be chequered pattern to give friction to the products conveyed. The belt is used in Bag Checking Conveyor, Treadmills etc.
PVC Rough Top Belts: For General duty conveying applications. 2 layers of PVC cover with two or three plies of Polyester fabric. The Top Cover will be of super grip PVC as in the image to give friction to the products conveyed. The belt is used when there is elevation in conveyor from ground level.
Other pattern belts are also custom built depending on the customer requirement. The pulley diameters are valid for a hot vulcanized splice and at the indicated belt force. Depending on the splice and working conditions (e.g temperature), different pulley diameters may be possible or necessary. When fasteners are used, the minimum diameters are increased by approx 50%.
Other pattern belts are also custom built depending on the customer requirement. The pulley diameters are valid for a hot vulcanized splice and at the indicated belt force. Depending on the splice and working conditions (e.g temperature), different pulley diameters may be possible or necessary. When fasteners are used, the minimum diameters are increased by approx 50%.
Alligators and Fasteners
We give site belt mounting and site joining services. Joining can be finger-spliced or using fasteners
PU belts
Thermoplastic polyurethane (TPU) which NyloGrip uses for the coating of its belts has many outstanding properties. Obviously the TPU's wear resistance - which is far greater than any other plastic or rubber materials (or even steel!) - makes it the most prominent candidate for the coating of conveyor belts for all types of industries. Chemically inert and extremely resilient, this innovative material is now also used for example as the base material of fully implantable artificial hearts, withstanding at least 180 million beats over a 5- year period ! Safe and durable, polyurethane simply outlives the product life span it is used in.
SIDEWALL/PROFILE/CLEAT CONVEYOR BELT
Cleats and sidewalls are designed on a conveyor belt to provide maximum product handling capacity. The cleats and sidewalls are moulded to the base conveyor belts with advance technology.
Standard T Cleats
Inclined Cleats
Mechanical Attached Cleats
Conveyor belts can be attached mechanically with SS/ Al/MS strips which act as cleats for better conveying operations
SS Strips riveted to a PU Conveyor belt
V GUIDE PROFILES: These profiles help tracking the conveyor belt in the conveyor. It will be positioned either bottom center of the conveyor belt or on the either sides of the belt. The conveyor rollers will be given mating grooves so as to facilitate positive conveyor belt tracking.
V Guide Strips
Bottom Profile (AX section) on RoughTop PVC Conveyor belt
- Inclined conveyor systems looking to enhance carry capacity
- For systems with minimum pulley diameters of 2½” – 6” (63 – 150 mm)
Standard T Cleats
Inclined Cleats
Mechanical Attached Cleats
Conveyor belts can be attached mechanically with SS/ Al/MS strips which act as cleats for better conveying operations
SS Strips riveted to a PU Conveyor belt
V GUIDE PROFILES: These profiles help tracking the conveyor belt in the conveyor. It will be positioned either bottom center of the conveyor belt or on the either sides of the belt. The conveyor rollers will be given mating grooves so as to facilitate positive conveyor belt tracking.
V Guide Strips
Bottom Profile (AX section) on RoughTop PVC Conveyor belt
SILICONE RUBBER CONVEYOR BELTS
a) Silicone Zip Lock PVC Conveyor Belt Material: White Silicone Rubber Compound Food Grade with Fabric Core Nylon Reinforced
Application: For plastic bag sealing and cutting machine--- elastic sealing and cutting for making self-sealing plastic bag
High-temperature resistant: Working temperature: 280- 350 ℃ Degree Celsius
Application: For plastic bag sealing and cutting machine--- elastic sealing and cutting for making self-sealing plastic bag
High-temperature resistant: Working temperature: 280- 350 ℃ Degree Celsius
b) Silicone Rubber UV Machine Conveyor belts
Silicone rubber- Black cover with Polyester reinforcement used in Printing and Packaging machineries mainly in the UV M/c. It withstands temp upto 180C The belts are made endless through alligator joining methods.
Silicone rubber- Black cover with Polyester reinforcement used in Printing and Packaging machineries mainly in the UV M/c. It withstands temp upto 180C The belts are made endless through alligator joining methods.
c) Silicone Rubber Coated Belts
This type of silicone conveyor belt consists of a rubber coating which is applied to one or two layers of Glass Fabric. Since it is resistant to many chemicals, greases and oils. they are used for ascending conveyors and as a cooling conveyor belt for sticky masses such as caramel, nougat, granulate or adhesives.
This type of silicone conveyor belt consists of a rubber coating which is applied to one or two layers of Glass Fabric. Since it is resistant to many chemicals, greases and oils. they are used for ascending conveyors and as a cooling conveyor belt for sticky masses such as caramel, nougat, granulate or adhesives.
TEFLON BELTS
NyloGrip specializes in manufacturing PTFE Coated Fiber Glass Fabrics that are used to make conveyor belts for high temperature applications.
PTFE Coated Glass Fabrics used to make Conveyor Belts possess excellent non-stick and high tensile properties. They are non-toxic, non-wettable, and immune to fungus and hence are highly recommended for applications in the food industry. These belts operate in temperatures ranging from -200˚C to +280˚C.
Applications:
Type of Splices
Alligator joints, dori joints, heat sealed overlap.
PTFE Coated Glass Fabrics used to make Conveyor Belts possess excellent non-stick and high tensile properties. They are non-toxic, non-wettable, and immune to fungus and hence are highly recommended for applications in the food industry. These belts operate in temperatures ranging from -200˚C to +280˚C.
Applications:
Type of Splices
Alligator joints, dori joints, heat sealed overlap.
CATERPILLAR BELTS
We specialize in manufacturing caterpillar belts/ Take-off belts/ Take-up belts of all sizes with Plain/ V Groove / Poly V Groove Bottom depending on the end-use application.
Mainly used in drawdown/ take off applications in Wire, Cable, Pipe industries and in other extrusion related applications
Mainly used in drawdown/ take off applications in Wire, Cable, Pipe industries and in other extrusion related applications
LIFTING BELTS
CANVAS BELTS
Canvas belts are used for general purpose conveying applications. Canvas belts basically have a cotton fabric and a canvas cover
We manufacture Cotton-Cotton-28 Oz, 32 Oz, 36 Oz, 42 Oz, 48 Oz, 34 Oz for elevator belts.
Wide selection of Belt width ranging from 200mm up to 2400mm with 2 to 8 plies.
Superior adhesion levels between plies while maintaining flexibility for effective operation.
We manufacture Cotton-Cotton-28 Oz, 32 Oz, 36 Oz, 42 Oz, 48 Oz, 34 Oz for elevator belts.
Wide selection of Belt width ranging from 200mm up to 2400mm with 2 to 8 plies.
Superior adhesion levels between plies while maintaining flexibility for effective operation.
MODULAR BELTS
Since their introduction more than 30years ago, the popularity of plastic modular belts has grown steadily. Constructed of injection-molded modules and hinge rods, plastic modular belts are positively driven and tracked by plastic sprockets. This positive drive and tracking system eliminates slippage, preventing damage to the belt’s edge and the potential for product contamination or premature belt failure.
Plastic modular conveyor belts are assembled in a bricklayed pattern for strength and can be custom-made in virtually any width or length required. Various pitch sizes are also available to support specific conveyor designs; ½"pitch belts are used for tight transfers while larger pitch products such as 2"are used to convey heavier loads.
Applications: Used in Automotive Food Industrial ,Logistics and Material Handling, Packaging and Tyre and Rubber Industries.
Pitches Available: From 12mm pitch to 50mm pitch Series Surface Types: FlatTop, Flush Grid, Raised Rib, Perforated Accessories Available: Sprockets, Flights, SideGaurds, Wear Strips and Retaining Rings
Plastic modular conveyor belts are assembled in a bricklayed pattern for strength and can be custom-made in virtually any width or length required. Various pitch sizes are also available to support specific conveyor designs; ½"pitch belts are used for tight transfers while larger pitch products such as 2"are used to convey heavier loads.
Applications: Used in Automotive Food Industrial ,Logistics and Material Handling, Packaging and Tyre and Rubber Industries.
Pitches Available: From 12mm pitch to 50mm pitch Series Surface Types: FlatTop, Flush Grid, Raised Rib, Perforated Accessories Available: Sprockets, Flights, SideGaurds, Wear Strips and Retaining Rings
SLAT CHAINS
SS Slat Chain
Thermoplastic Slat Chain
We offer a range of premium quality straight running single hinge chains that are manufactured using best grade stainless steel and Thermoplastics. These chains are suitable for handling glass bottles, pet containers, kegs, crates etc. Further, our range is available in varied specifications and as per the customized requirements of clients
Different Types of Thermoplastic Slat Chain
--Single Hinge and Double Hinge Slat Chains
--Straight Run and Sideflexing Slat Chains
Thermoplastic Slat Chain
We offer a range of premium quality straight running single hinge chains that are manufactured using best grade stainless steel and Thermoplastics. These chains are suitable for handling glass bottles, pet containers, kegs, crates etc. Further, our range is available in varied specifications and as per the customized requirements of clients
Different Types of Thermoplastic Slat Chain
--Single Hinge and Double Hinge Slat Chains
--Straight Run and Sideflexing Slat Chains
RUBBER MOULDING/LAGGING FOR CONVEYOR ROLLERS AND COMPONENTS
RUBBER MOULDING FOR CONVEYOR ROLLERS (AUTOCLAVE-STEAM CURING)
RUBBER MOULDING_ COLD METHOD
RUBBER LAGGING FOR BETTER FRICTION FOR ROLLER-BELT CONTACT
P1, P2, P3 (Rubber material- Plain, Knurling, Pimple Top Types)
PU1, PU2, PU3 (PU material- Plain, Knurling, Pimple Top Types)
PVC1, PVC3 (PVC Material- Button Type and Pimple Top Type)
SS Conveyor belts
We manufacture SS plain/ mesh type conveyor belts for high temp applications.
We supply Honeycomb belts, Vibrating screen mesh, Wire mesh belts as per customer requirements both straight run and curve type.
We supply Honeycomb belts, Vibrating screen mesh, Wire mesh belts as per customer requirements both straight run and curve type.
